S-Electro Diamond Trail
€3.999,00
Shop speedlab

Bike with Staying Power.
Ready for You

S-Electro Diamond Trail
Hardtail | E Trail | Alloy | 29" | 140mm Travel | 21.5kg
€3.999

Price incl. VAT excl. Local Import Taxes & Shipping Costs.

Size
    EmptyDrop
    Fork Travel

    140mm

    Motor

    SHIMANO EP 8

    Torque

    up to 85 Nm

    Battery

    720 Wh

    Range

    2.8 - 4.8 hours
    72 - 120 km

    (varies based on riding conditions)

    Charge Time

    2.2 - 4.5 hours

    (50 - 100%)

    Assist

    25 km/h
    20 mph

    Noise

    Quiet

    Fork Travel

    140mm

    Motor

    SHIMANO EP 8

    Torque

    up to 85 Nm

    Battery

    720 Wh

    Range

    2.8 - 4.8 hours
    72 - 120 km

    (varies based on riding conditions)

    Charge Time

    2.2 - 4.5 hours

    (50 - 100%)

    Assist

    25 km/h
    20 mph

    Noise

    Quiet

    Book an appointment for a personal consultation. Dedicated time with our shop pro to help you make the right choice.

    {formbuilder:101028}

    KEY FEATURES

    • 6061 Hydro-formed diamond e-bike frame,
    • RockShox 35 Gold RL Debon Air 29" 140mm fork
    • Shimano EP8 motor
    • Darfon 720Wh high-capacity battery
    • SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width wheels
    • Maxxis Assegai 29x2.5'' Tubeless tyres
    • Shimano Deore 11sp rear derailleur
    • Surface lightweight alloy components
    • USB charging port
    • RIDE VAST DISTANCES ASSISTED, WITHOUT THE NEED FOR RECHARGE ON THE WAY.

      S-Electro Diamond Trail is designed around a Shimano EP8 250W motor with integrated torque sensor. This motor is powered by a high capacity 720Wh internal battery giving the Diamond Trail unrivaled range of assistance. A smart control LED button makes switching modes intuitive and easy to do on the fly, also indicating battery levels. An on-bar Led display is easy to read/use and shows all info needed for the electric system.

      HYDROFORMED DOUBLE BUTTED INTEGRATED ALLOY FRAME

      S-Electro Diamond features a double butted hydroformed alloy frame with integrated motor mount and internal battery. Hydroforming is the process of forcing tubing into a negative mould with internal pressurized oil and or water. The frame can have thinner walls, complex shapes and curves that makes it stronger and lighter than comparative alloy frames with regular tubing.

      DRIVE SYSTEM, POWER AND DISPLAY.

      S-Electro Diamond is designed around a Shimano Steps EP8 motor. This motor is paired to a high capacity 720Wh internal battery giving the Step an unrivalled range of pedal assistance. The Shimano LCD display is intuitive and easy to use, also indicating battery levels and shows all info needed for the electric system.

    • SAFETY AND COMFORT

      Durable hydraulic disc brakes, possibility of integration of lighting system and a comfortable seating position offer reliability and comfort.

      GEOMETRY

      Geometry on the S-Electro Diamond is designed to give efficient power delivery to the wheels, promoting comfort for long days out on the bike and to improve handling. This makes the Diamond E-bike the ideal commuting or touring companion, whilst maintaining capability to take on more demanding terrain. The frame also has a low stand over, making it great for both male and female riders.

      OPTIMISED CHAINSTAY LENGTH BETWEEN AGILITY AND LARGE VOLUME TYRE

      Shorter chainstay means nimble handling, and with the centralized weight of the electric drive system, the compact rear end provides a more balanced ride feel.

      POWERFUL SHIMANO MOTOR

      S-Electro Diamond is designed around a Shimano Steps EP8, 85 Nm mid-drive motor. Shimano’s EP8 motor offers excellent all-round performance which is perfect for E-MTB riding. With its smooth torque support, the ride feel is simply incredible.

      HIGH VOLUME 720 Wh BATTERY

      S-Electro Diamond is paired to a high capacity 720Wh internal battery giving the Steps an unrivalled. range of pedal assistance. This battery is easy-to-charge and is designed for maximum convenience in your day-to-day riding routine. Lock up your bike worry free – the battery is key removable only. Charging is easy on or off the bike – turn the key, pop it out, and plug in the charger delivered with your bike.

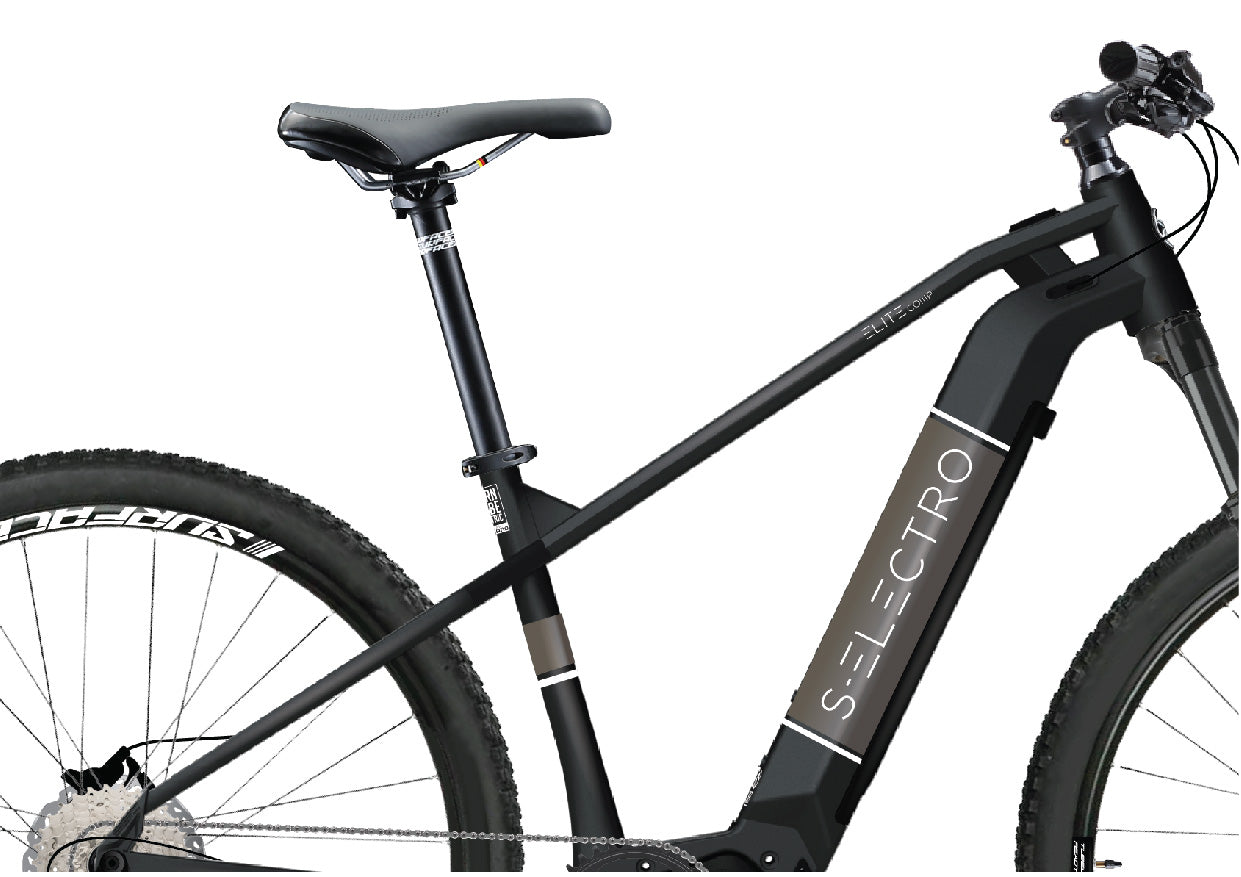

      DROPPER POST COMPATIBILITY

      The bike is internal routed dropper post compatible and simple to set up. Dropper posts increase riding clearance on technical sections. It could also improve your experience commuting or touring, making mounting and dismounting easier, and stops or traffic light waits less cumbersome.

      LED START BUTTON AND USB-C CHARGING PORT

      The intuitive LED button makes switching between modes easier and more intuitive for users, as well as indicating battery level in colour. A Diamond E-bike that can be connected to various smartphones with the appropriate USB-C charging cable.

      INFORMATIVE DISPLAY

      Depending on S-Electro Diamond Model, it offers a very informative display for intuitive operation as well as an ergonomic switch position especially developed for E-MTB.

      ADJUSTABLE STACK

      Extra spacers on the fork steerer offers an upright relaxed riding position, reducing back and shoulder pressure for more comfort.

      OVERSIZED COCKPIT PARTS

      S-Electro Diamond models use oversized cockpit parts such as wider handelbar, stem and seat post diameter, which offer more leverage and finer control. A wider handelbar opens your chest and bring your weight forward, giving more traction on the front wheel.

      SPECIALLY DEVELOPED E-BIKE ERGONOMIC SADDLE

      S-Electro Diamond models offer a specially developed E-MTB saddle which is purposely suitable for use on electric bicycles in terms of function, ergonomics and durability.

      FENDER AND RACK COMPATIBLE

      All S-Electro Diamond models feature a fenders and rear rack with built-in pannier mounts, an optional front rack mounts on the fork (depending on the fork model). Please follow the structural weight limits listed below when adding cargo.

      KICK STAND MOUNT

      S-Electro Diamond has an integrated kick stand mount on the frame, you can park your E-bike bike quickly, safely and prevent annoying scratches

      CHARGING PORT

      S-Electro Diamond charging port features a compact, semi-integrated design for charging the frame-integrated 720Wh battery.

      BATTERY CHARGER ADAPTER

      This is particularly useful for charging your e-bike during the cold winter months or if you are unable to store your bike indoors. Suitable for battery chargers from the Darfon series, the Darfon adapter connects to your Darfon battery, so you can charge the battery off the bike. This part needs to be purchased separately.

    • SPECIFICATIONS.

      FRAMESET

      Frame

      Aluminium E - MTB frame designed to take a 720wh battery and Shimano STEPs EP8, E8000 or E7000 motor. Battery integrated inside frame.The geometry is designed for trail riding. This frame has tyre clearance for 29 x 2.6" tyres.

      Headset

      Token TK035A-15 Sealed Bearing

      Frame Axle Spacing

      148x12mm, P.1.75

      Front Axle Specification

      110x15 mm

      Hanger Type

      Hanger 03

      E-BIKE

      Motor

      Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque

      Battery

      Darfon 720Wh, 36V, 20Ah Li-Ion Battery, 3.8Kg Weight

      Charger

      Darfon Smart Plus Battery Charger, 100-240V, 4A, EU use

      Display

      Shimano SW-E7000, Left

      Switch

      Shimano SW-EM7000, Left

      SUSPENSION

      Fork

      RockShox 35 Gold RL Debon Air 29" - 140mm - 44mm Offset

      Fork Travel

      140mm

      WHEELS

      Wheelset

      SUNringlé Custom

      Hubs

      F: Shimano 15x110mm, 6 Bolt

      R: Shimano, 148x12mm, 6-Bolt

      Rims

      F: SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width

      R: SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width

      Tyres

      F: Maxxis Assegai, 29x2.50WT, EXO+ TR, 3C MaxxTerra

      R: Maxxis Assegai, 29x2.50WT, EXO+ TR, 3C MaxxTerra

      Max Tyre Size

      2.6"

      DRIVETRAIN

      Crankset

      Shimano FC-EM600

      Max Chainring Size

      38T

      Shifter(s)

      R: Shimano SL-M5100-R Deore, 11 Speed Rapidfire Plus

      Rear Derailleur

      Shimano RD-M5100 Deore, 11 Speed

      Cassette

      Shimano CS-M5100 Deore, 11 Speed 11-51T

      Chain

      KMC X11-1 11 Speed

      BRAKES

      Brakes

      F: Shimano MT410, Resin Pads

      R: Shimano MT410, Resin Pads

      Rotors

      F: Shimano SM-RT10 180mm, 6-Bolt

      R: Shimano SM-RT10 180mm, 6-Bolt

      COCKPIT

      Grips

      SBC Lockon Grip

      Handlebar

      SURFACE alloy Trail 35mm Handlebar, Backsweep 6°, Rise 12mm

      Stem

      SURFACE Trail alloy Stem

      Saddle

      SURFACE E-bike Ergo

      Seat Post

      SURFACE Dropper, 30.9mm

      Seatpost Clamp

      SURFACE Alloy

      WEIGHT

      Bike Weight

      21.5kg (M size, no pedals)

      RIDER WEIGHT LIMIT

      120kg - combined weight of bike and rider (including all kit).

      Disclaimer: Due to the nature of bike manufacturing, specification & finishes, component availability and price may be subject to change without prior written notification. Also images may not match final specifications due to component availability.

      Due to Covid-related scheduling and component availability challenges, bike specifications are subject to change without notice. Specifications may not be exactly what is shown in the photo.

    • FIND YOUR FIT.

      Proper bike fit is as important as getting the right bike for the job. Long term comfort and performance can be greatly improved with the right size bike. This acts as a guide only, so if you are unsure, please visit your Silverback reseller to be professionally measured and sized for the perfect fit.

      GEOMETRY.

      map type(mm unless specified) S M L XL
      Rider height(cm) 154-170 170-180 178-190 185-210
      Rider inseam(cm) 70-77 77-82 81-86 84-95
      A Seat tube c/t 390 430 460 490
      B Seat tube angle 76 76 76 76
      C Head tube angle 65.5 65.5 65.5 65.5
      D Top Tube 592 612 639 664
      E Reach 425 445 470 495
      F Chainstay length 455 455 455 455
      G bb height 314.5 314.5 314.5 314.5
      H head tube length 135 135 145 145
      I stack 668.8 668.8 678 678
      J standover 830.4 829.9 834.1 823
      K Wheelbase 1207 1227 1256 1281
    • FAQ.

      • Can I order an extra battery for my S-Electro?

        Yes you can - get in touch and we can sort it out for you.

      • Can I chip my ebike?

        Most country laws prohibit the use of derestricting or chipping your ebike, and so we can not comment on this. You will also void your warranty and wear out parts quicker if you do.

      • Can I fit a throttle to my Diamond E Bike?

        We don't sell throttles. You would have to check with your local authorities on their policies on pedal assist vs unassisted ebikes. Contact us directly for warranty information should you want to add a throttle. In most cases you warranty will be void if not installed by an accredited dealer.

      • Can I ride my ebike without assist?

        Yes - just pedal as you would any other bike.

      • Where can I find the E-bike manual?

        Click HERE to view.

      • Where can I find serial number of the E bike?

        The serial number of the frame is located under the black cover, you will need to unscrew 2 screws in order to take it down to see the frame number.

      • Can I customize my Shimano display to another language or change other settings?

         Yes, you need to download E TUBE app and configure the settings. SEE HERE
